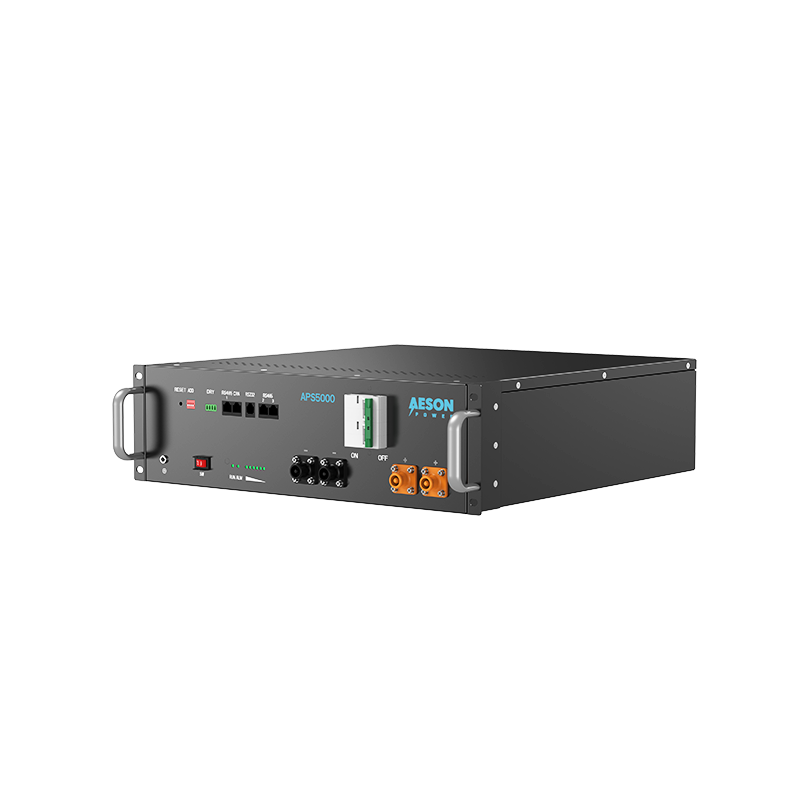

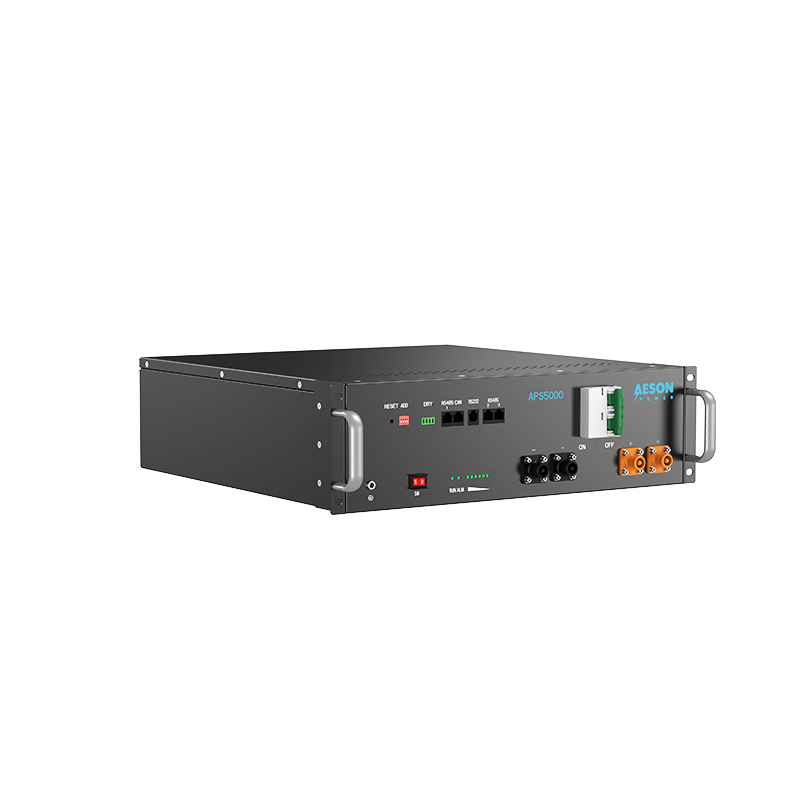

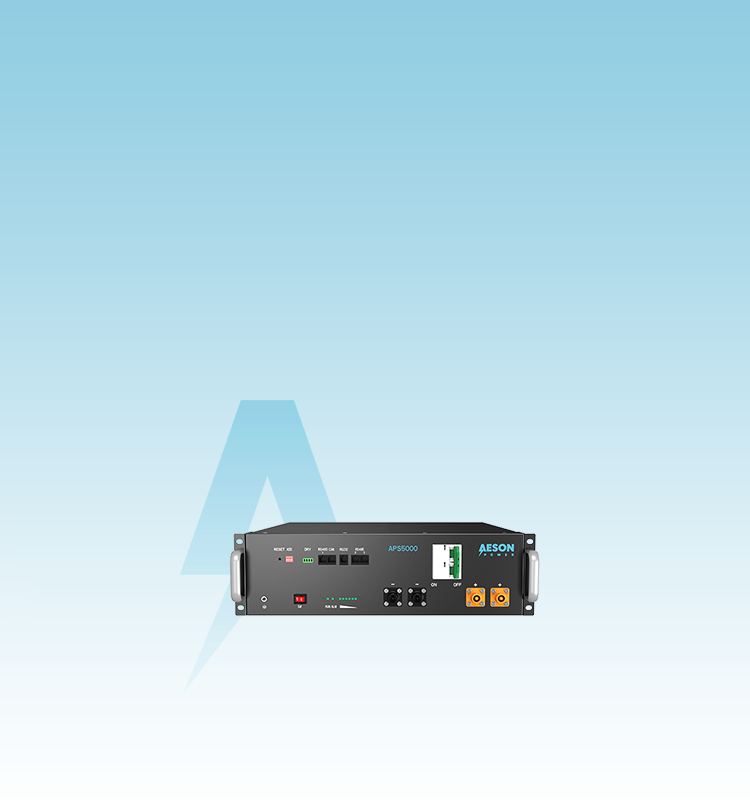

APS5000
Aeson Power APS series is a non-managed 51.2V LiFePO4 (Lithium-Iron Phosphate) battery module. With advanced LiFePO4 cell technology and smart BMS, the product has the benefits of long cycle life, small size, lightweight, high safety, and environmental protection. The battery has a Wi-Fi function, which supports remote fault diagnosis and the OTA upgrade function. It is well suited for solar battery systems, power backup systems, and energy storage applications.
Product Lineup
Application Scenarios
-
On Grid
-
Hybrid
-
Off Grid
Technical Specifications
| Item | Parameters | Note | |||
| Nominal Capacity | 100Ah | ||||
| Nominal Voltage | 51.2V | ||||
| Charge & Discharge Efficiency | >98% | 0.5C Charge;1C | |||
| Self-discharge/month | ≤3% | 50%SOC | |||
| Dimension | 442*470*133(mm) | ||||
| Weight | 44kg±1kg | ||||
| Cycle Life | ≥6000 | @25℃80%DoD @25℃60%EOL | |||
| Design Life | 15+years | @25℃ | |||
| Discharge Voltage | 46.4V~47V | ||||
| Charge Voltage | 56V~57V | ||||
| Standard Charge Current | 20A | 0.2C | |||
| Max.Continuous Charge/Discharge Current | 100A | 1C | |||
| Peak Charge/Discharge Current | 101~120A | @15min | |||
| Peak Charge/Discharge Current | 121~200A | @10s | |||
| Communication | RS485, CAN, RS232 | ||||
| Battery Cell Technology | Lithium Iron Phosphate | ||||
| Enclosure Protection Rating | IP20 | ||||
| Working Temperature Discharge | -20℃~60℃ | ||||
| Working Temperature Charge | 0℃~60℃ | ||||
| Working Temperature Storage | -5℃~45℃ | ||||
| Humidity | 5%～95%(RH) | No Condensation | |||
| Short Current | <2000A/1ms | ||||
| Certification | UN38.3/IEC62619/IEC62040/CE/MSDS/CEC | ||||
