HaloDyne-HV 75/150, 125/150
ESS for Commercial & Industrial

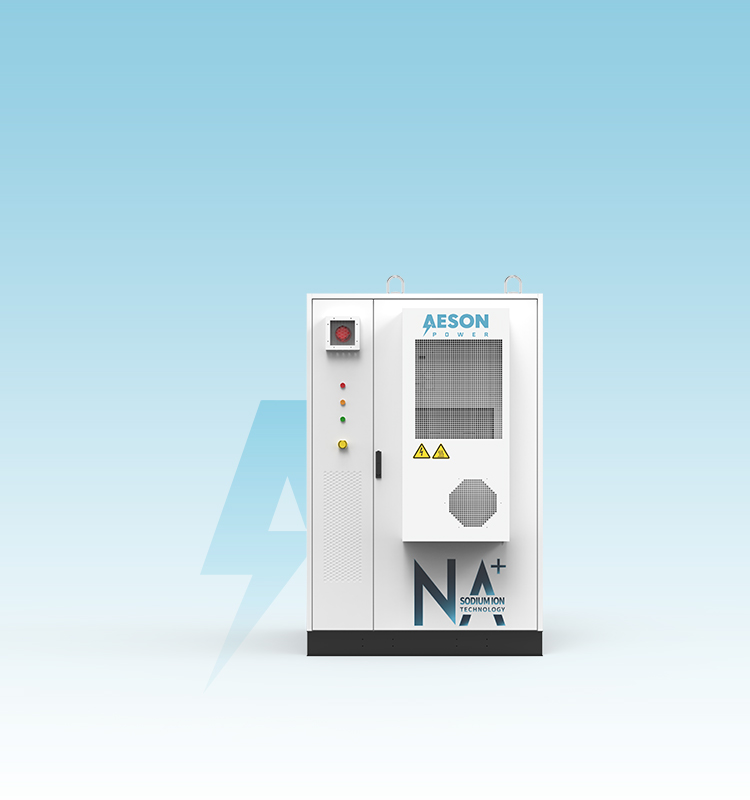

Product View
Features
-
Safe/Fire Resistant Thermal Stability
-
Extreme Temperature
-
Light Weight
-
100% Useable Capability
-
Zero Volt Recovery
-
Super High Cycles
-
Water or CO2
-
Non Toxic
-
Recycling Friendly
Technical Specifications
| Item | HaloDyne-HV- 75/150 | HaloDyne-HV- 125/150 | |
| AC Information | Rated Voltage | 400V | 400V |
| Voltage Range | 300V~460V | 300V~460V | |
| Rated Power | 75kW | 125kW | |
| Maximum Power | 90kW | 150kW | |
| Rated Frequency | 50/60Hz | 50/60Hz | |
| Wiring Method | Standard Connection | Three-Phase Four-Wire | |
| DC Information | Rated Voltage | 837.9VDC | 837.9VDC |
| Voltage Range | 588.00~970VDC | 588.00~970VDC | |
| Rated Charging/Discharging Power | 75kW | 125kW | |
| Max Charging/Discharging Power | 128A | 212A | |
| Nominal Capacity | 150.882kWh | 125.685kWh | |
| System Information | Battery Configuration | 1P294S | 1P294S |
| Battery Type | Sodium-ion, 180Ah,2.85V | Sodium-ion, 180Ah,2.85V | |
| Power Factor | > 0.99 | > 0.99 | |
| Basic Information | Maximum System Efficiency | 90% | 90% |
| Cooling Method | Air Conditioning Cooling | Air Conditioning Cooling | |
| Fire Protection Medium | Aerosol | Aerosol | |
| Operating Altitude | ≤2000m, Derating at 4000 m | ≤2000m, Derating at 4000 m | |
| Protection Level | ≥IP54 | ≥IP54 | |
| Corrosion Resistance Level | C4H | C4H | |
| Dimensions(W*D*H) | 1400*1700*2550(mm) | 1400*1700*2100(mm) | |
| Weight | ≤2.7t | ≤3t | |
| Communication Protocol | Modbus TCP | Modbus TCP | |
| Units in Parallel Connection | On Grid up to 32; Off Grid up to 6 | ||
| BMS | Integration | ||
| EMS | Local Integration | ||
| User Interface | Modbus TCP/IP, IEC 61850, IEC 104, CAN | ||
| Remote Monitoring | 4G Ethernet | ||
| Inverter | AS4777 Compliant Grid-tie Inverter | ||
| Compliance Standards | UN 38.3, UN 3551, UN3552, IEC 61000, IEC 62619, IEC 62477,IEC 60529 | ||
